MSRP151,000,000 VND
Specifications and pricing are subject to change.
MODEL SPECS |
Supermoto-tuned
long-travel suspension
17” front & rear wheels
with road tires
| Maximum Power | 14.0 kW {19 PS} / 7,600 rpm |
| Maximum Torque | 19.8 Nm {2.0 kgfm} / 6,100 rpm |
| Engine type | Air-cooled, 4-stroke, SOHC 2 valve Single |
| Displacement | 233 cm³ |
| Bore and Stroke | 67.0 x 66.0 mm |
| Compression Ratio | 9.4:1 |
| Fuel System | Fuel injection: ø32 mm x 1 |
| Ignition system | Digital |
| Starting system | Electric |
| Lubrication System | Forced lubrication, wet sump |
| Transmission | 6-speed, return |
| Primary reduction ratio | 2.871 (89/31) |
| Gear ratio: 1st | 3.000 (39/13) |
| Gear ratio: 2nd | 2.067 (31/15) |
| Gear ratio: 3rd | 1.556 (28/18) |
| Gear ratio: 4th | 1.261 (29/23) |
| Gear ratio: 5th | 1.040 (26/25) |
| Gear ratio: 6th | 0.852 (23/27) |
| Final reduction ratio | 3.071 (43/14) |
| Clutch type (Primary) | Wet multi-disc, manual |
| Driving system | Chain |
| Frame type | Perimeter, high-tensile steel |
| Front Suspension | ø37 mm inverted fork |
| Rear Suspension | New Uni Trak with adjustable spring preload |
| Front Wheel Travel | 204 mm |
| Rear Wheel Travel | 168 mm |
| Rake | 26.5° |
| Trail | 86 mm |
| Steering angle (left/right) | 45° / 45° |

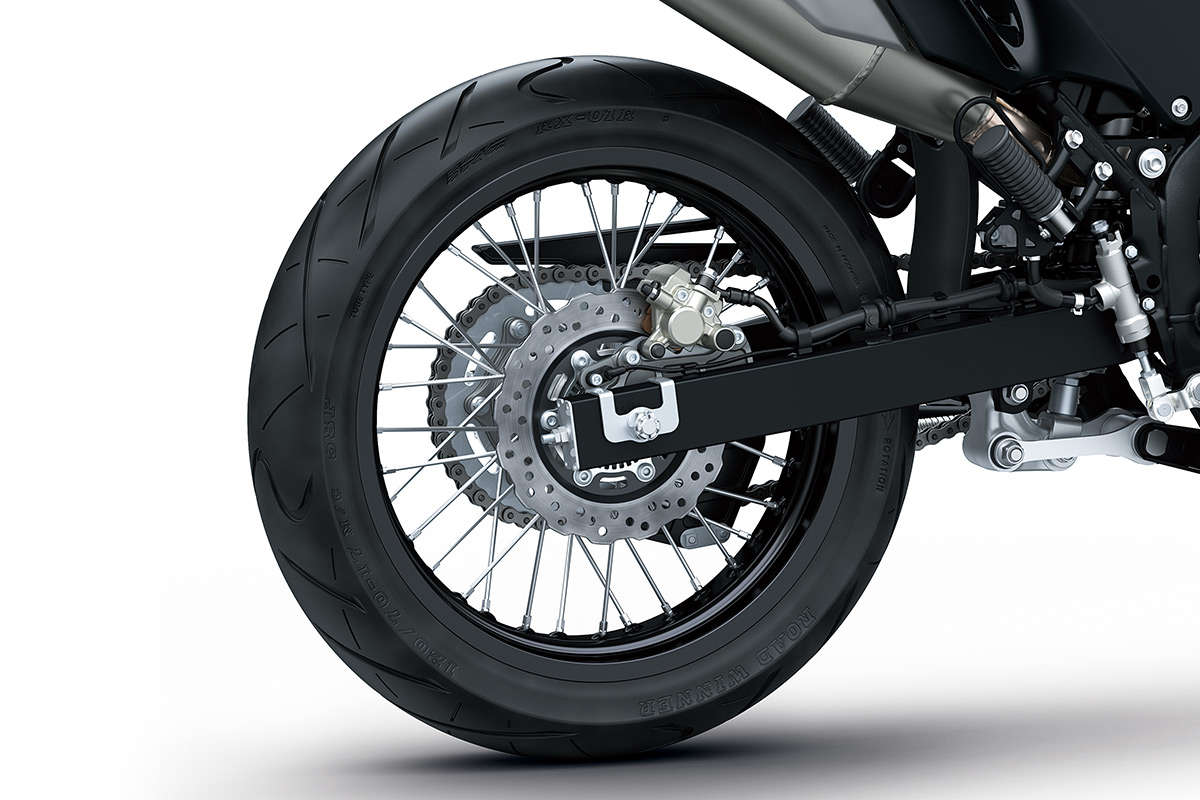

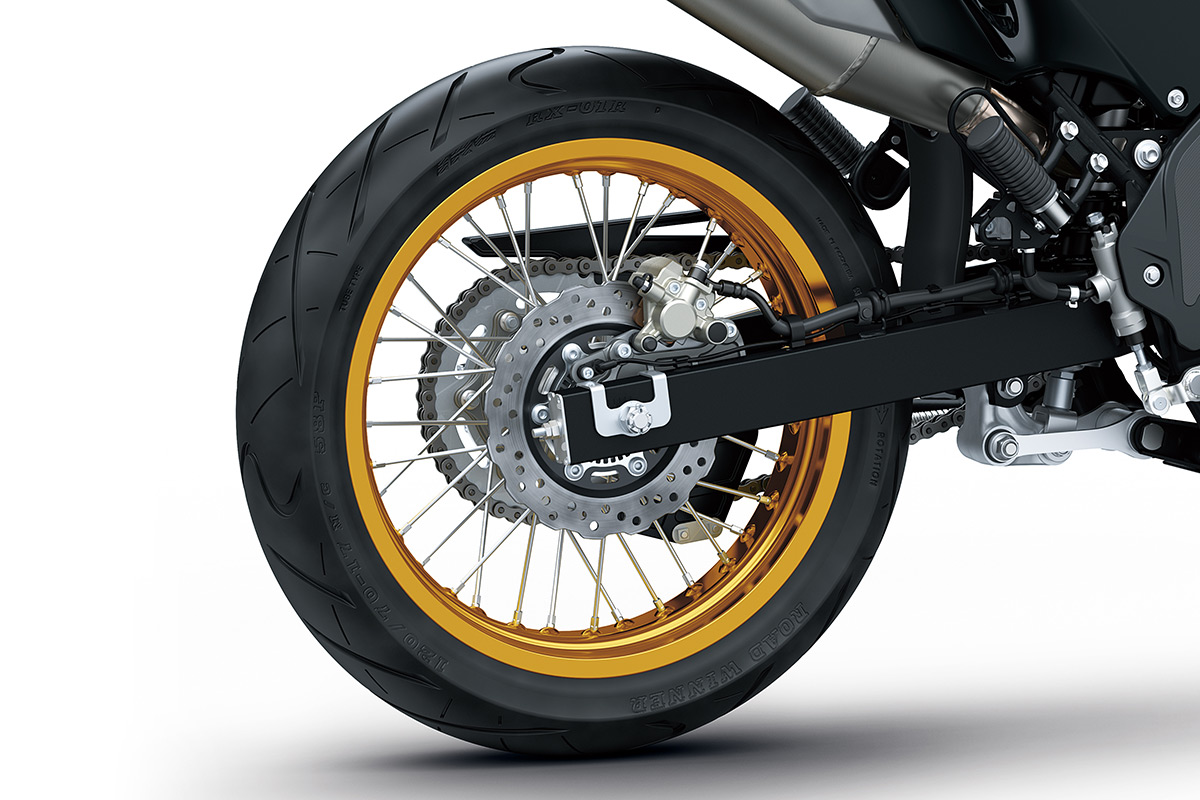

| Front Tire | 110/70-17M/C 54P |
| Rear Tire | 120/70-17M/C 58P |

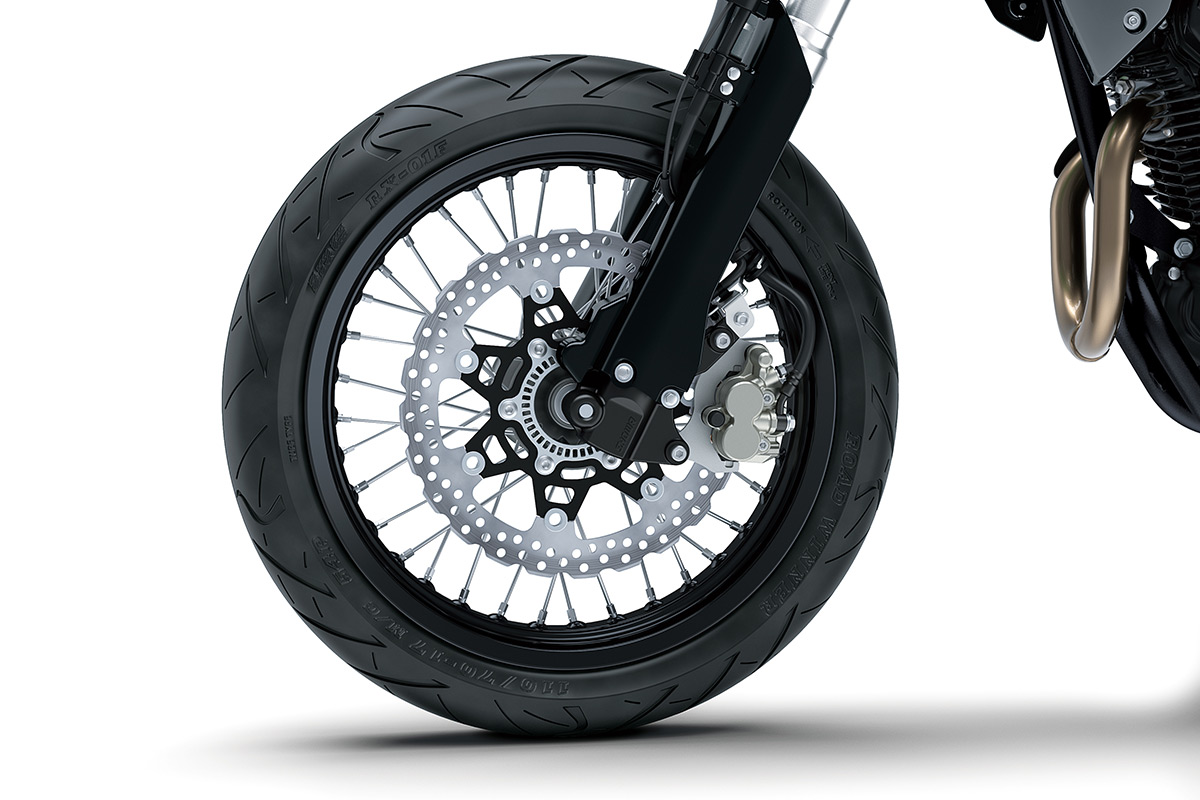

| Front Brake Type | ø300 mm semi-floating petal disc |
| F. Brake Effective Diam. | ø275 mm |
| Rear Brake | ø220 mm petal disc |
| R. Brake Effective Diam. | ø186 mm |
| Dimensions (LxWxH) | 2,050 x 835 x 1,120 mm |
| Wheelbase | 1,375 mm |
| Road clearance | 230 mm |
| Seat height | 845 mm |
| Curb weight* | 135 kg |
| Fuel tank capacity | 7.5 litres |
| Fuel Consumption | 3,6 L/100km |
| Warranty | 24 months |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2019 Kawasaki Motors Vietnam Co., Ltd.
Specifications subject to change.
