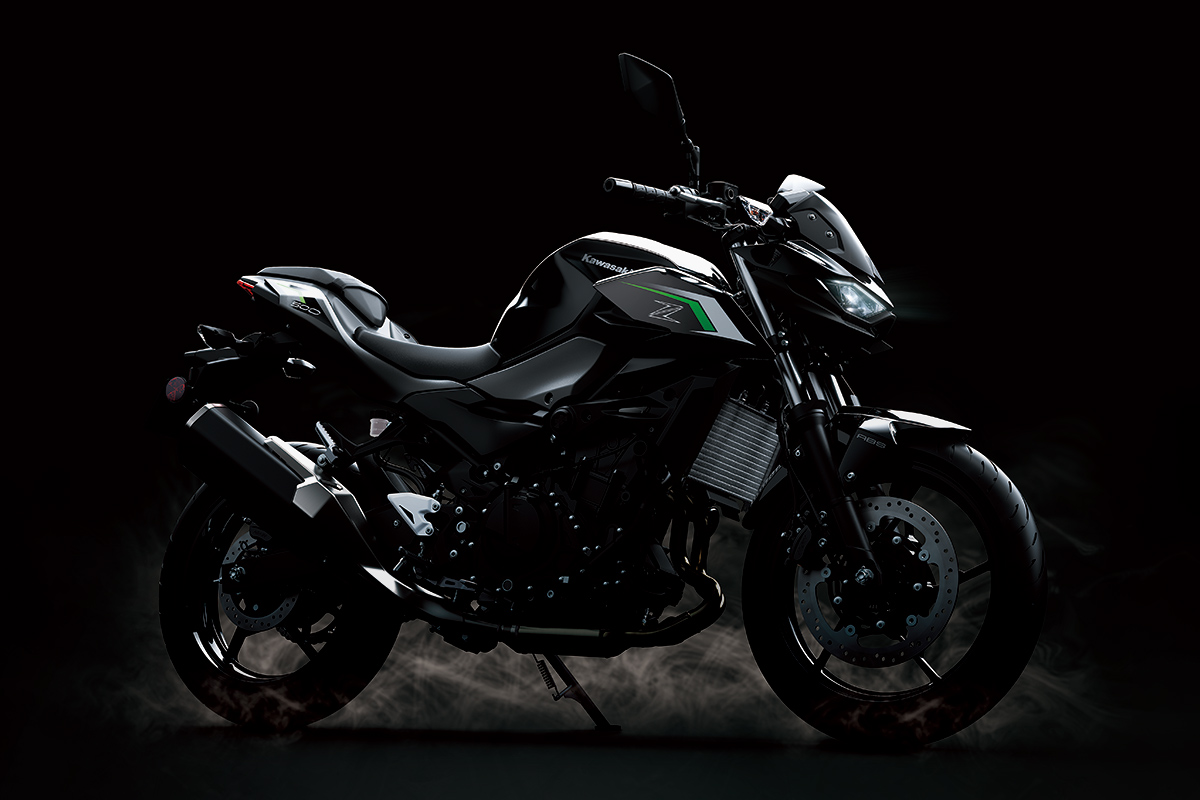

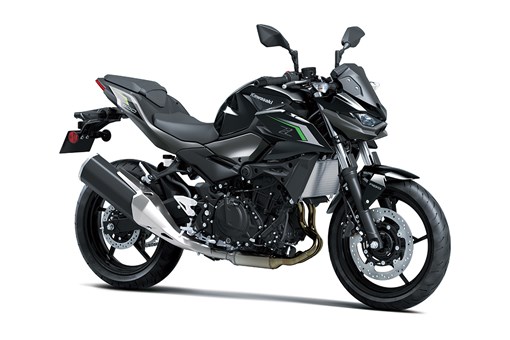

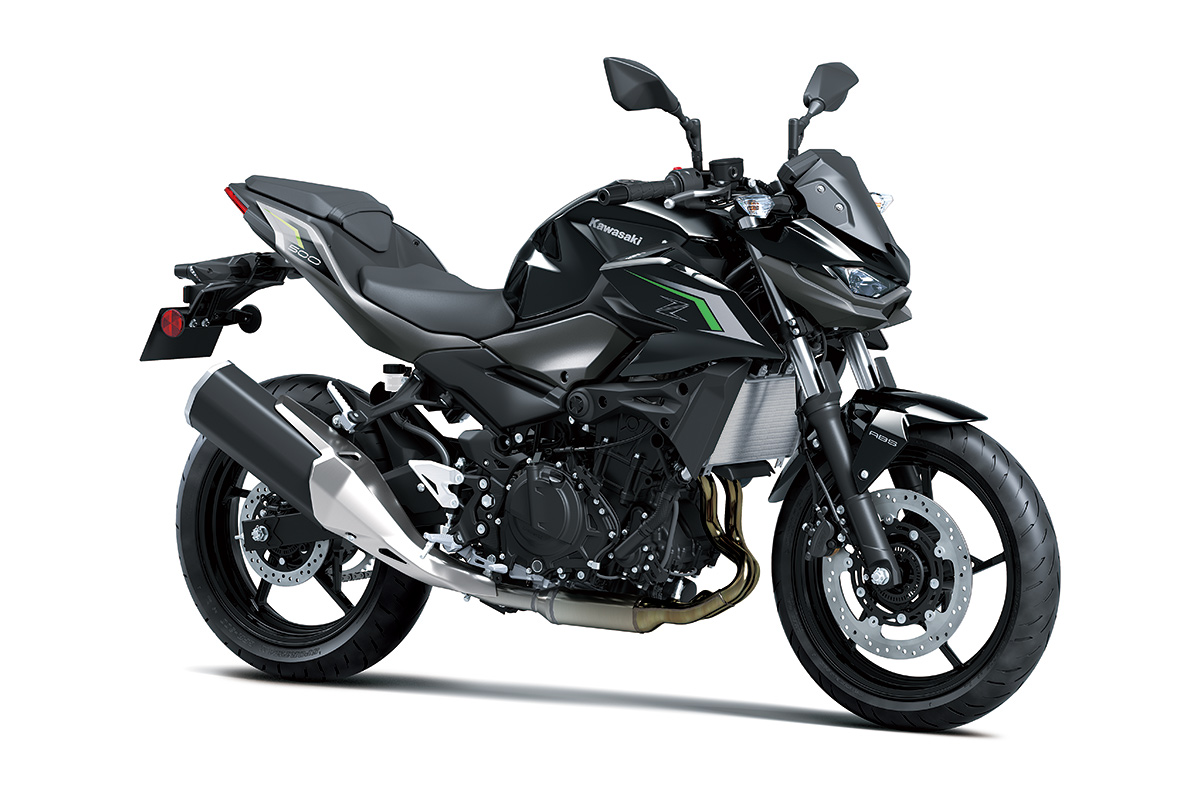

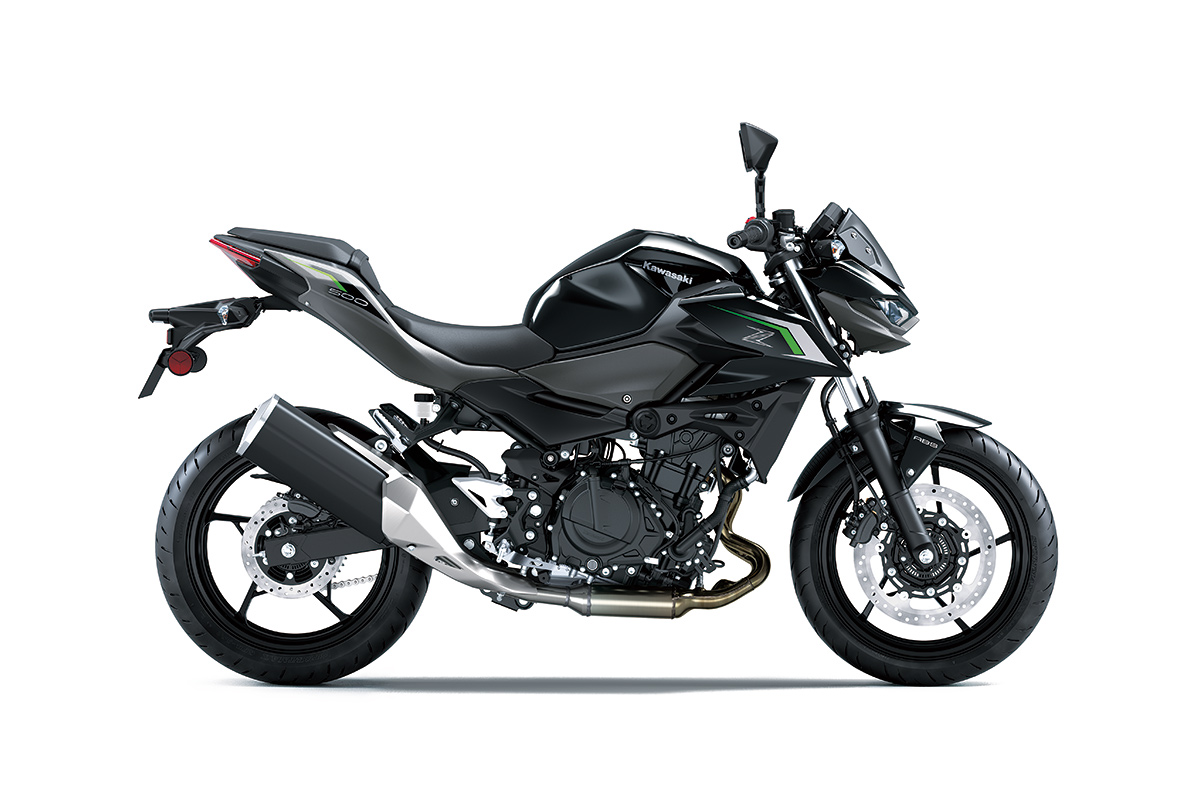

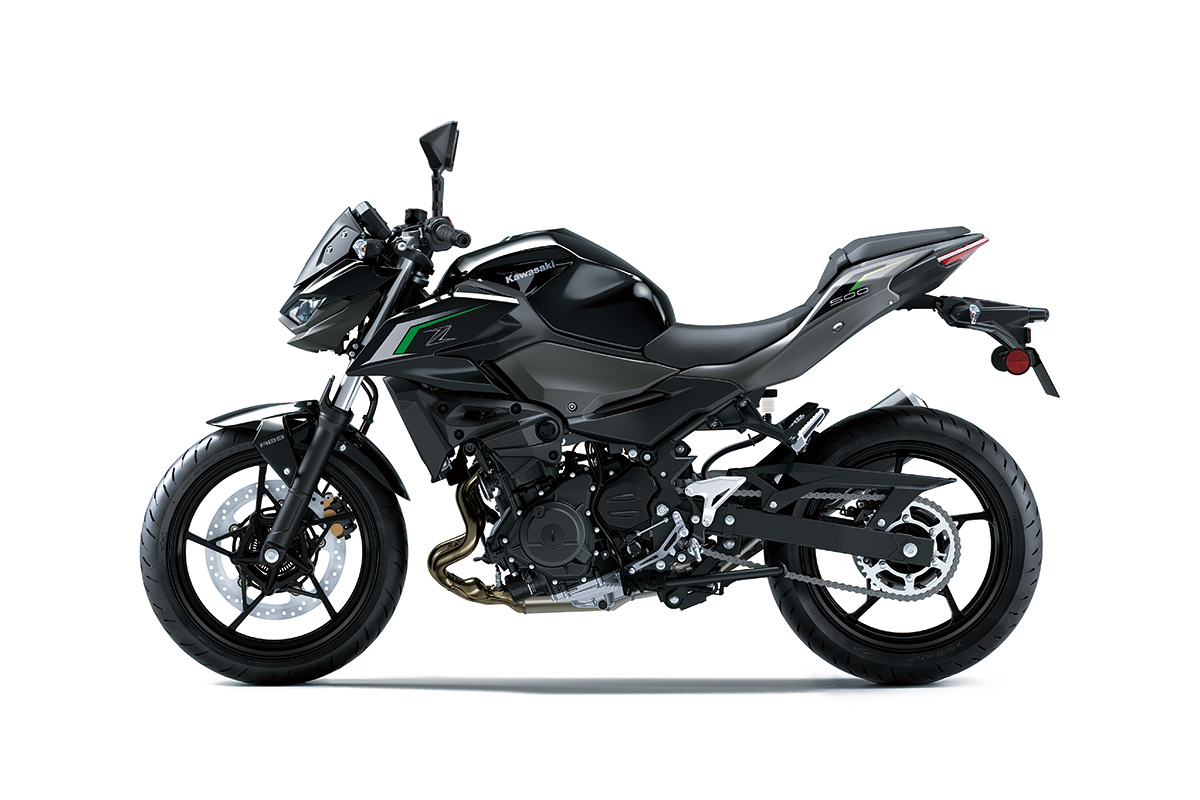

Z500 ABS

Streetfighter Style and Attitude

  • MSRP
    170.600.000

Specifications and pricing are subject to change.

360 Vehicle View
360
Select a Color

Select a View
Parallel-twin
451 cm³
Aggressive
Streetfighter Styling

Click on a technology to learn more.

Chassis Management Technology

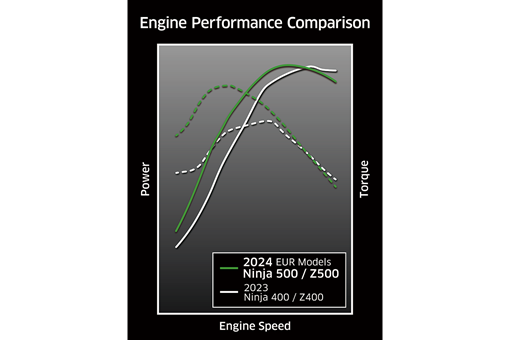

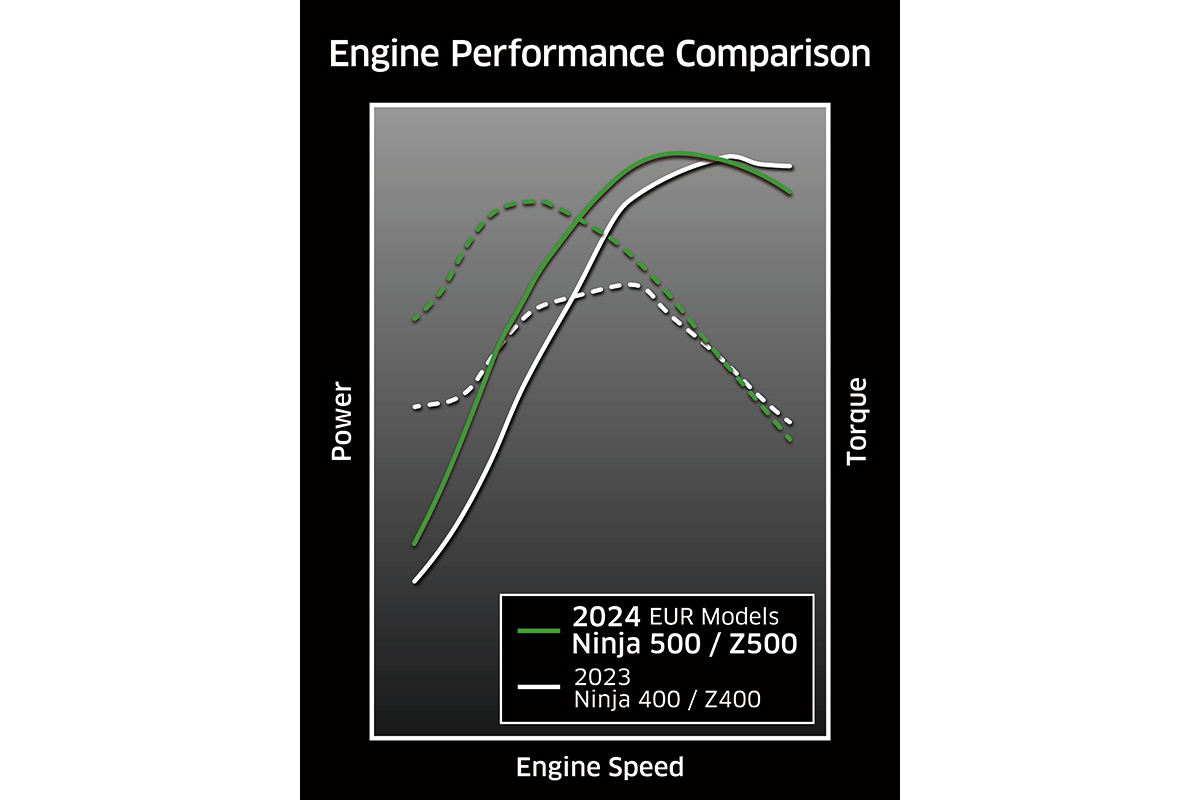

Maximum Power 33,4 kW {45 PS} / 9,000 rpm
Maximum Torque 42.6 N·m {4.3 kgfm} / 6,000 rpm

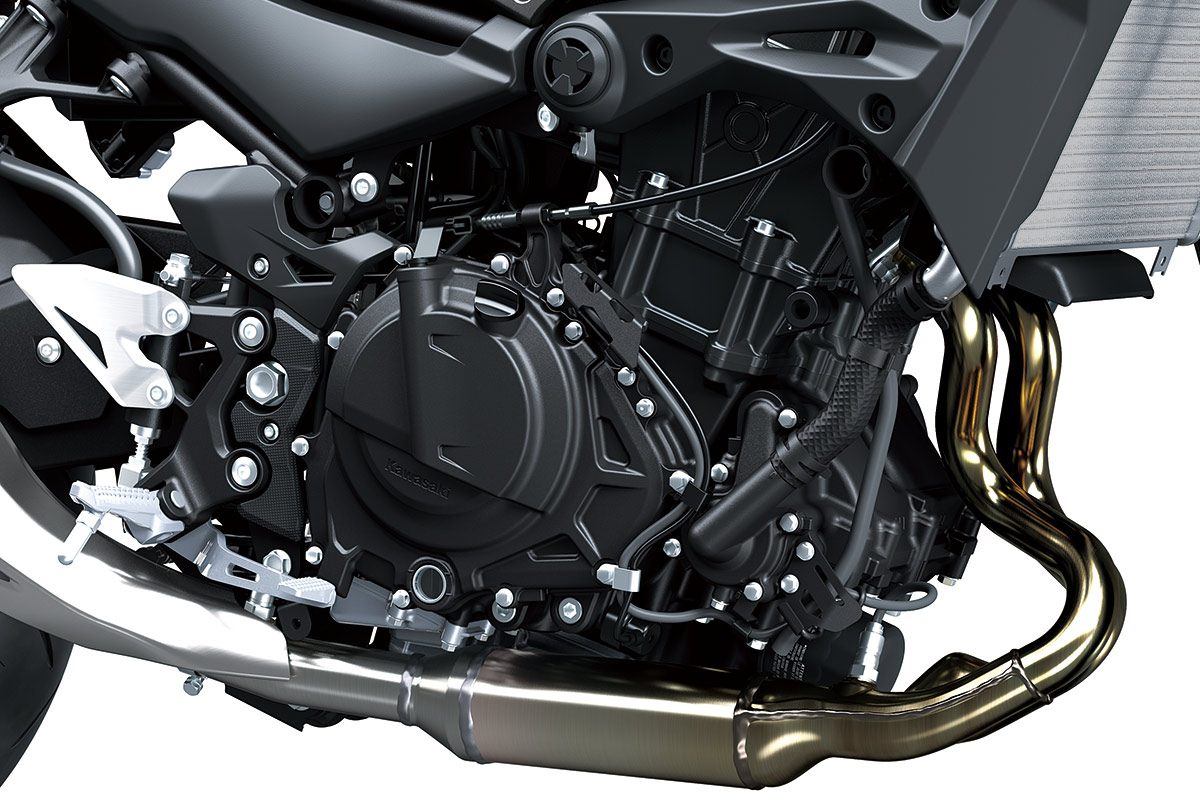

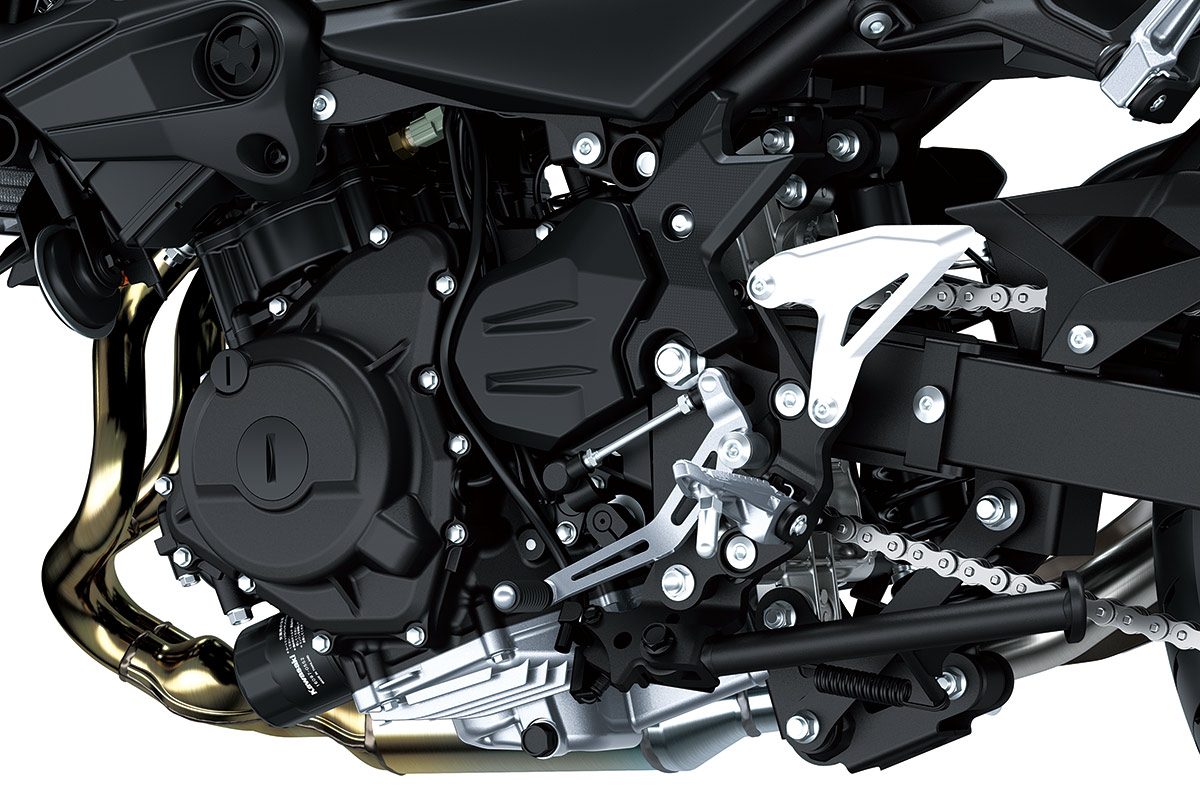

Engine type Liquid-cooled, 4-stroke, DOHC 8-valve Parallel Twin
Displacement 451 cm³
Bore and Stroke 70.0 x 58.6 mm
Compression Ratio 11.3:1
Fuel System Fuel injection: ø32 mm x 2
Ignition system Digital
Starting system Electric
Lubrication System Forced Lubrication, wet sump
Transmission 6-speed, return
Primary reduction ratio 2.029 (69/34)
Gear ratio: 1st 2.929 (41/14)
Gear ratio: 2nd 2.056 (37/18)
Gear ratio: 3rd 1.619 (34/21)
Gear ratio: 4th 1.333 (32/24)
Gear ratio: 5th 1.154 (30/26)
Gear ratio: 6th 1.037 (28 /27)
Final reduction ratio 3.071 (43/14)
Clutch type (Primary) Wet multi-disc, manual
Driving system Chain
Frame type Trellis, high-tensile steel
Front Suspension ø41 mm telescopic fork
Rear Suspension Bottom-link Uni Trak, gas-charged shock with adjustable spring preload
Front Wheel Travel 120mm
Rear Wheel Travel 130 mm
Rake 24.3°
Trail 92 mm
Steering angle (left/right) 35° / 35°
Front Tire 110/70-17 M/C 54S
Rear Tire 150/60R17 M/C 66H
Front Brake Type Single semi-floating 310 mm petal disc
Rear Brake Single 220 mm petal disc
Wheelbase 1,375 mm
Dimensions (LxWxH) 1,995 x 800 x 1,055 mm
Wheelbase 1,375 mm
Road clearance 145 mm

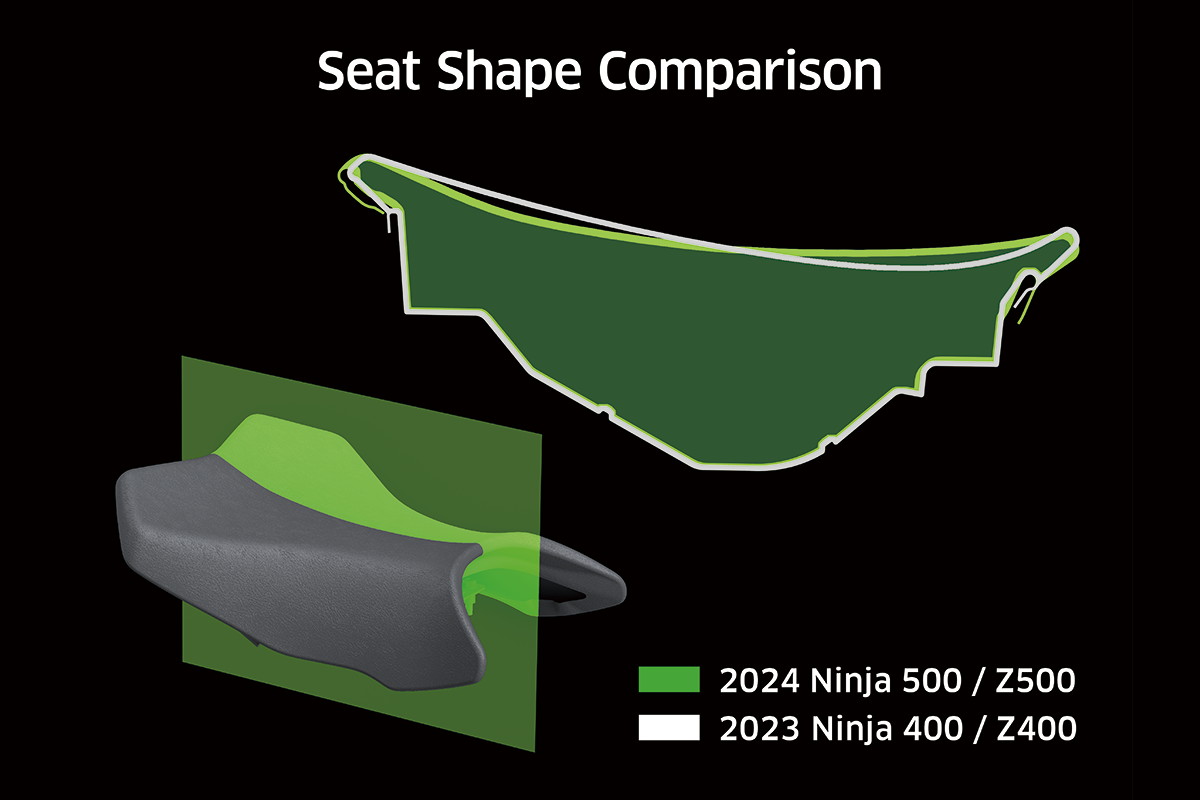

Seat height 785mm
Curb weight* 167 kg
Fuel tank capacity 14 litres
Fuel Consumption 4.9L/100km
Warranty 24 months warranty

*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Estimated dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
